BS201M

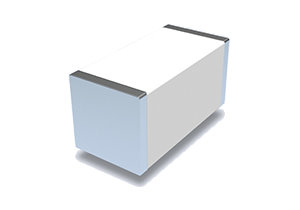

Bencent GDT BS201M
Model
:
BS201M
Catalog
Catalogue
BS201M Catalogue English (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BS201M
Overvoltage Protection Components
Gas Discharge Tubes (GDT)
DC Breakdown Voltage(VBR) 100V/s
200V
Tolerance of VBR
160- 240V
Impulse Spark-over Voltage 1KV/μs
≤850V
Arc Voltage (Va) @1A
～10V
Impulse Discharge Current 8/20μs
0.5KA
Insulation Resistance
≥1GΩ
Insulation resistance Test voltage @ DC
100V
Capacitance Co 0.5VDC@1MHz
≤0.6pF
Body Length (L)
3.2mm
Body Width (W)
1.6mm
Body Height
1.6mm
Application
Ethernet
Min. Packaging (Pcs)
2000
