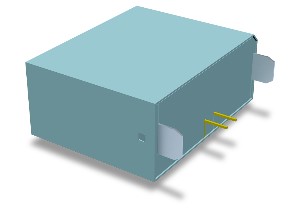

Bencent SPD BSPDPV20K-670H1A

Model: BSPDPV20K-670H1A
Bencent
Contact us about this product
Description
  • Model
  • BSPDPV20K-670H1A
  • Overvoltage Protection Components
  • Surge Protection Device (SPD)
  • Maximum Allowable Voltage AC.rms
  • 510V
  • Modes of protection
  • －
  • Maximum Allowable Voltage DC
  • 670V
  • Rated Operating Voltage (Un)
  • －
  • Zero Sequence Voltage (Uo)
  • －
  • Varistor Voltage 1mA Min
  • 612V
  • Varistor Voltage 1mA Ave
  • 680V
  • Varistor Voltage 1mA Max
  • 748V
  • Maximum Continuous Operating Voltage (Uc)
  • －
  • Withstanding Surge Current (I n)
  • 10KA
  • Withstanding Surge Current (I Max)
  • 20KA
  • Nominal Discharge Current (In)
  • －
  • Voltage Protection Level (Up)
  • 1.5KV
  • Coordinated Capacitance
  • 0V
  • Degrees Of Protection Provided By Enclosure (IP code)
  • IP20
  • Min. Packaging (Pcs)
  • 324
