SDWL3225FW250MSTF

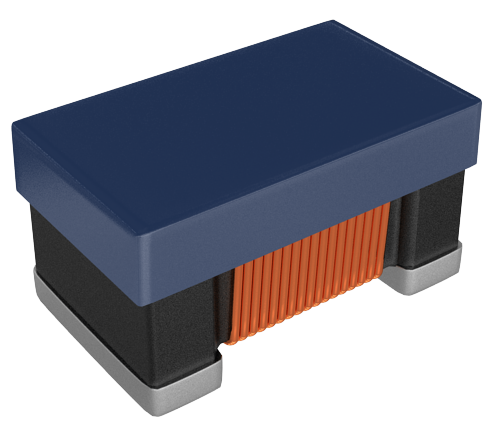

Sunlord SDWL3225FW Series SDWL3225FW250MSTF
Model
:
SDWL3225FW250MSTF
Catalogue
SDWL3225FW Series Catalogue English (Download)
SDWL3225FW Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
SDWL3225FW250MSTF
Inductors
Series
SDWL3225FW
Structure
Wire Wound
Inductance
25μH
Inductance Tolerance
±20%
Quality Q
20
L/Q Test Freq. (MHz)
2.5
SRF (MHz)
20
DCR Max. (Ω)
6
Saturation Current (A) Isat
/
Heat Rating Current (A) Irms
0.12
Body Length (mm)
3.65
Body Width (mm)
2.95
Body Thick (mm)
2.7
Automotive
No
Min. Packaging (Pcs)
1000
