ASDCL03Q2N1BT

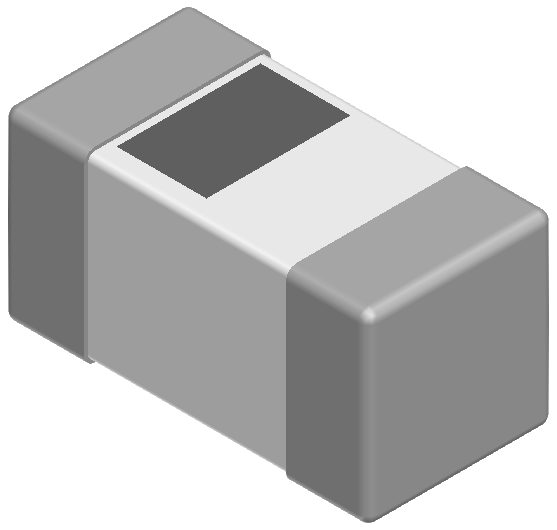

Sunlord ASDCL03 Series ASDCL03Q2N1BT
Model
:
ASDCL03Q2N1BT
Catalogue
ASDCL03 Series Catalogue English (Download)
ASDCL03 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
ASDCL03Q2N1BT
Inductors
Series
ASDCL03
Structure
Multilayer
Inductance
2.1nH
Inductance Tolerance
±0.1nH
Quality Q
14
L/Q Test Freq. (MHz)
500
SRF (MHz)
11000
DCR Max. (Ω)
0.15
Saturation Current (A) Isat
/
Heat Rating Current (A) Irms
0.6
Body Length (mm)
0.6
Body Width (mm)
0.3
Body Thick (mm)
0.3
Automotive
Yes
Min. Packaging (Pcs)
15000
