ASDCL03Q91NJT

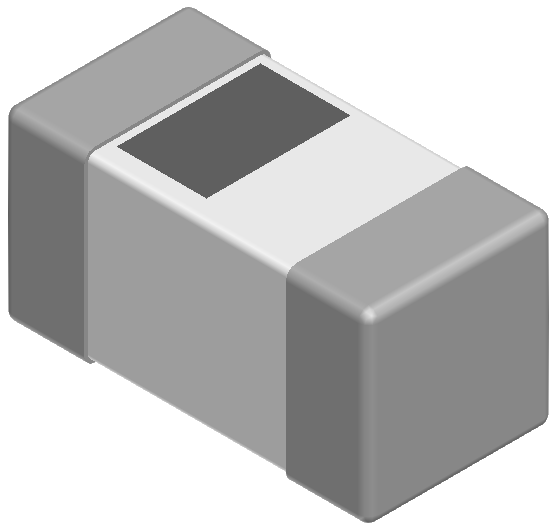

Sunlord ASDCL03 Series ASDCL03Q91NJT
Model
:
ASDCL03Q91NJT
Catalogue
ASDCL03 Series Catalogue English (Download)
ASDCL03 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
ASDCL03Q91NJT
Inductors
Series
ASDCL03
Structure
Multilayer
Inductance
91nH
Inductance Tolerance
±5%
Quality Q
10
L/Q Test Freq. (MHz)
300
SRF (MHz)
1000
DCR Max. (Ω)
4
Saturation Current (A) Isat
/
Heat Rating Current (A) Irms
0.08
Body Length (mm)
0.6
Body Width (mm)
0.3
Body Thick (mm)
0.3
Automotive
Yes
Min. Packaging (Pcs)
15000
