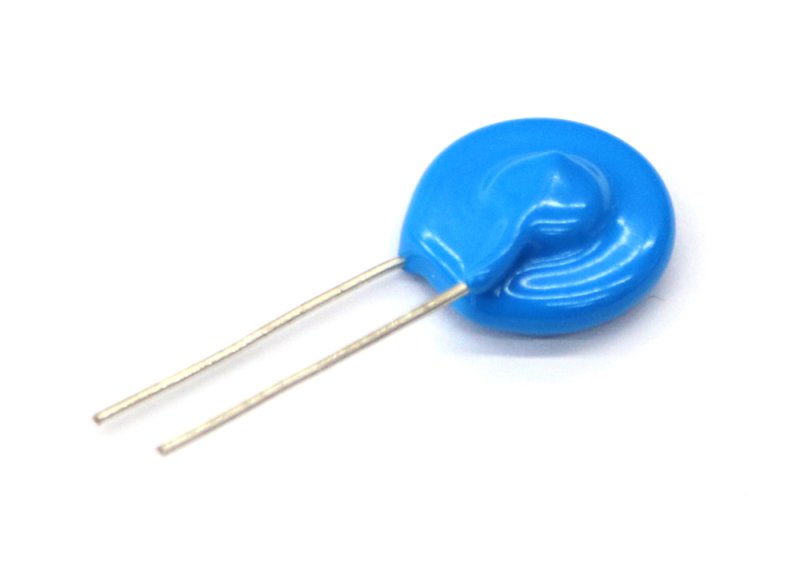

BMG20D151K091Y
Bencent BMG BMG20D151K091Y
Model
:
BMG20D151K091Y
Catalog
Catalogue
BMG20D151K091Y Catalogue English (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BMG20D151K091Y
Overvoltage Protection Components
Pressure-Sensitive Composite Gas Tubes (BMG)
Recommended Maximum Continuous Operating Voltage (MCOV) VAC
100V
UL Maximum Continuous Operating Voltage (MCOV) VAC
120V
Metal Oxide Varistors Voltage 1mA
150(135~165)V
GDT Voltage 100V/S
90(72~108)V
Platform voltage 1000V/us
≤270V
Peak voltage 1000V/us
≤708V
Withstanding Surge Current
20@8/20μs 5KA
Maximum Energy 10/1000μs
106J
Typical Capacitance (Reference) @1KHz
5.0pF
Body Length (L)
25mm
Body Width (W)
23mm
Body Height (H)
8.0mm
Min. Packaging (Pcs)
100
150
