DSHP05TSGER

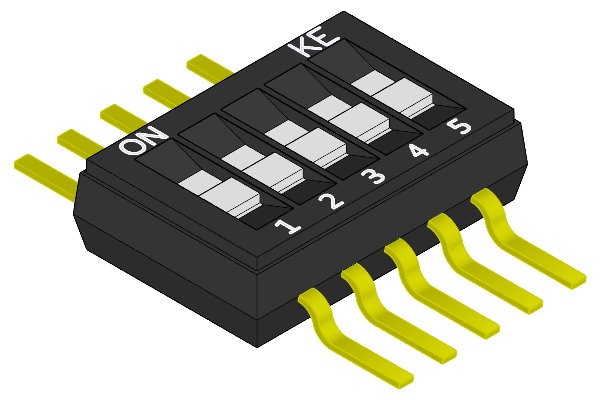

KE DSHP Series DSHP05TSGER
Model
:
DSHP05TSGER
Catalog
Specification
Specification
Datasheet DSHP05TSGET (Download)
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
KE
Model
DSHP05TSGER
Switches
DIP Switches
Series
DSHP
Type
SMD
Circuit Type
Single Pole Single Throw
Terminal pitch
1.27mm
Operator Force
1000gf Max
Terminal Shape
S Bent
No. of pins
05
Body Length (L)
5.4mm
Body Width (W)
7.95mm
Body Height (H)
2.3mm
Color
Black
Switching Rating
25mA, 24VDC
Non-Switching Rating
100mA, 50VDC
Contact Resistance
50mΩ Max
Insulation Resistance
500mΩ at 500VDC
Dielectric Strength
500VDC/1min
Travel
0.6mm
Operating Life
2000
Operating Temperature
－40°～85°
Packaging
Reel
Min. Packaging (Pcs)
2000
