DSWB01LHGER

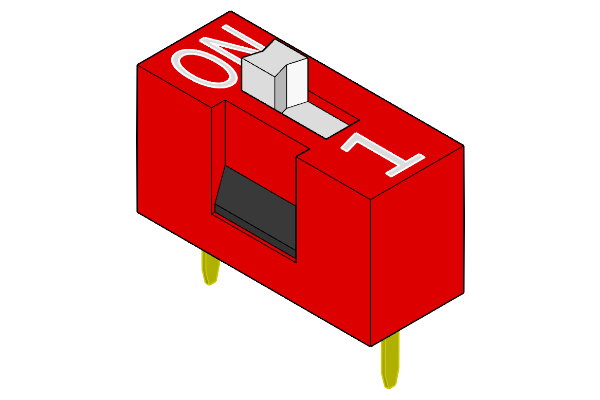

KE DSWB Series DSWB01LHGER
Model
:
DSWB01LHGER
Catalog
Specification
Specification
Datasheet DSWB01LHGET (Download)
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
KE
Model
DSWB01LHGER
Switches
DIP Switches
Series
DSWB
Type
DIP
Circuit Type
Single Pole Single Throw
Terminal pitch
2.54mm
Operator Force
1000gf Max
Terminal Shape
H Bent
No. of pins
01
Body Length (L)
9.9mm
Body Width (W)
3.96mm
Body Height (H)
5.7mm
Color
Red
Switching Rating
25mA, 24VDC
Non-Switching Rating
100mA, 50VDC
Contact Resistance
50mΩ Max
Insulation Resistance
500mΩ at 500VDC
Dielectric Strength
500VDC/1min
Travel
2.0mm
Operating Life
2000
Operating Temperature
－20°～70°
Packaging
Reel
