CRC5001-6401F

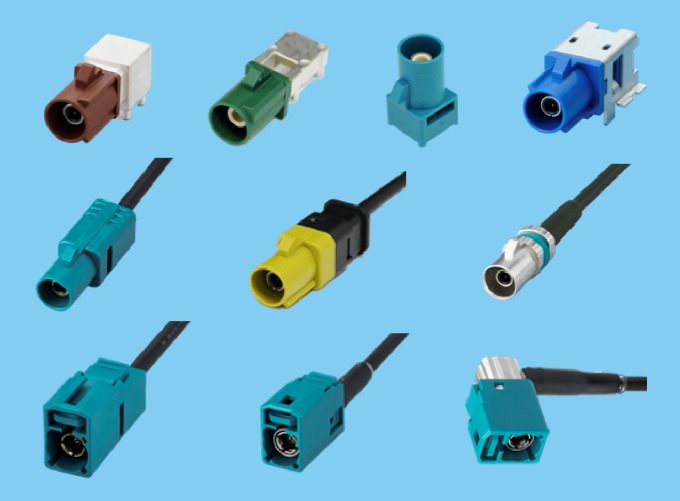

SMK VC-2 Series CRC5001-6401F
Model
:
CRC5001-6401F
Catalogue
VC-2 Series Catalogue English (Download)
VC-2 Series Catalogue Japanese (Download)
Datasheet
CRC5001-6401F Drawing (Download)
3D Data
3D CRC5001-6401F (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
SMK
Model
CRC5001-6401F
Connectors
RF Coaxial Connectors
Series
VC-2
Product Name
Coaxial FAKRA Connectors
Application
Automotive units (car navigation, GPS, TV, radio, rear camera, car audio, and etc.)
Standard
ISO20860-1, ISO20860- 2, DIN72594-1, DIN72594-2, SAE/USCAR-17, SAE/USCAR-18
Body Length (L)
10.5mm
Short Width (D)
8.5mm
Body Height (H)
15.5mm
Packaging
Emboss Taping（150 pcs／reel）
Type
External Connector for Automotive device
Frequency Impedance
DC to 4GHz
Nominal Impedance
50Ω
Mounting Height
15.5mm
Mounting Direction
Straight
Switch
without
Rated Voltage and Current
1A, 60V AC/DC
V.S.W.R.
1.3 max. (DC to 2GHz), 1.5 max. (2 to 4GHz)
Insertion Loss
0.3dB max. (DC to 3GHz), 0.35dB max. (3 to 4GHz)
Operating Temperature Range
－40℃ ～ ＋105℃
Housing
Thermoplastic Resin
Terminal
Cu Alloy, Au Plating
Receptacle/Plug/Inspecting Plug/AC Adaptor/Jig
Plug for PCB
Mounting Method
DIP(Flow)
Applicable Cable
－
Mounting Area
89.25mm²
Operating Life
30 Cycles
Receptacle
－
Withstanding Voltage
AC500V (for one minute)
